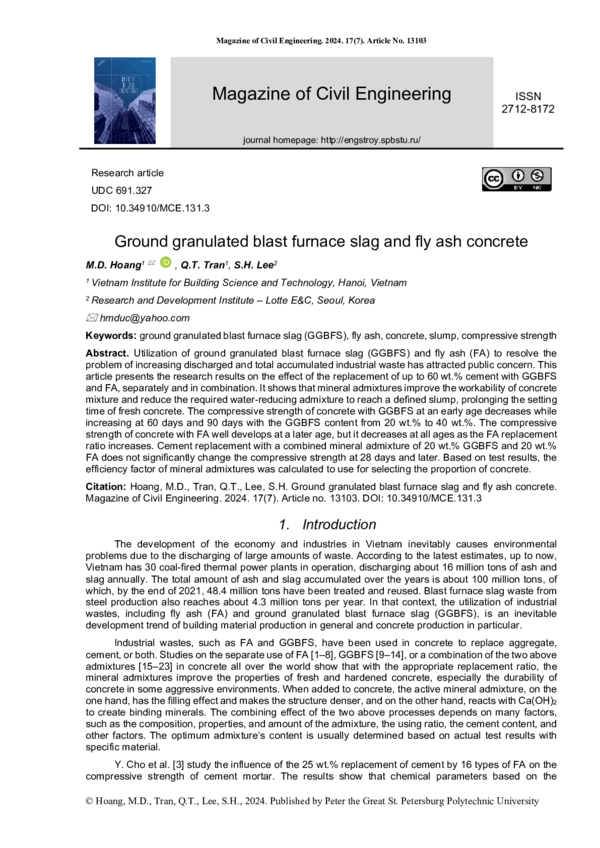

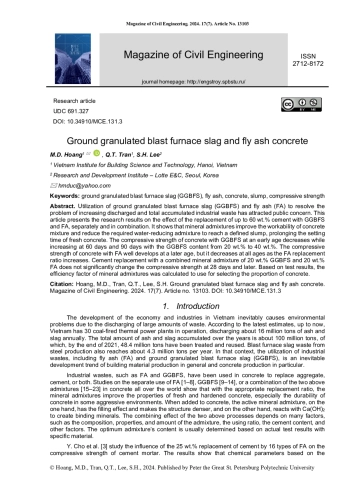

Utilization of ground granulated blast furnace slag (GGBFS) and fly ash (FA) to resolve the problem of increasing discharged and total accumulated industrial waste has attracted public concern. This article presents the research results on the effect of the replacement of up to 60 wt.% cement with GGBFS and FA, separately and in combination. It shows that mineral admixtures improve the workability of concrete mixture and reduce the required water-reducing admixture to reach a defined slump, prolonging the setting time of fresh concrete. The compressive strength of concrete with GGBFS at an early age decreases while increasing at 60 days and 90 days with the GGBFS content from 20 wt.% to 40 wt.%. The compressive strength of concrete with FA well develops at a later age, but it decreases at all ages as the FA replacement ratio increases. Cement replacement with a combined mineral admixture of 20 wt.% GGBFS and 20 wt.% FA does not significantly change the compressive strength at 28 days and later. Based on test result
Идентификаторы и классификаторы
The development of the economy and industries in Vietnam inevitably causes environmental problems due to the discharging of large amounts of waste. According to the latest estimates, up to now, Vietnam has 30 coal-fired thermal power plants in operation, discharging about 16 million tons of ash and slag annually. The total amount of ash and slag accumulated over the years is about 100 million tons, of which, by the end of 2021, 48.4 million tons have been treated and reused. Blast furnace slag waste from steel production also reaches about 4.3 million tons per year. In that context, the utilization of industrial wastes, including fly ash (FA) and ground granulated blast furnace slag (GGBFS), is an inevitable development trend of building material production in general and concrete production in particular.
Список литературы
1. Papadakis, V.G. Effect of fly ash on Portland cement systems: Part I. Low-calcium fly ash. Cement and Concrete Research. 1999. 29(11). Pp. 1727–1736. DOI: 10.1016/S0008-8846(99)00153-2
2. Oner, A., Akyuz, S., Yildiz, R. An experimental study on strength development of concrete containing fly ash and optimum usage of fly ash in concrete. Cement and Concrete Research. 2005. 35(6). Pp. 1165–1171. DOI: 10.1016/J.CEMCONRES.2004.09.031
3. Cho, Y.K., Jung, S.H., Choi, Y.C. Effects of chemical composition of fly ash on compressive strength of fly ash cement mortar. Construction and Building Materials. 2019. 204. Pp. 255–264. DOI: 10.1016/J.CONBUILDMAT.2019.01.208
4. Luan, C., Wu, Z., Han, Z., Gao, X., Zhou, Z., Du, P., Wu, F., Du, S., Huang Y. The effects of calcium content of fly ash on hydration and microstructure of ultra-high performance concrete (UHPC). Journal of Cleaner Production. 2016. 415. Article no. 137735. DOI: 10.1016/j.jclepro.2023.137735
5. Hwang, K., Noguchi, T., Tomosawa, F. Prediction model of compressive strength development of fly-ash concrete. Cement and Concrete Research. 2004. 34(12). Pp. 2269–2276. DOI: 10.1016/J.CEMCONRES.2004.04.009
6. Yildirim, H., Sümer, M., Akyüncü, V., Gürbüz, E. Comparison on efficiency factors of F and C types of fly ashes. Construction and Building Materials. 2010. 25(6). Pp. 2939–2947. DOI: 10.1016/J.CONBUILDMAT.2010.12.009
7. Sumer, M. Compressive strength and sulfate resistance properties of concretes containing Class F and Class C fly ashes. Construction and Building Materials. 2012. 34. Pp. 531–536. DOI: 10.1016/J.CONBUILDMAT.2012.02.023
8. Cho, Y.K., Jung, S.H., Choi, Y.C. Effects of chemical composition of fly ash on compressive strength of fly ash cement mortar. Construction and Building Materials. 2019. 204. Pp. 255–264. DOI: 10.1016/J.CONBUILDMAT.2019.01.208
9. Oner, A., Akyuz, S. An experimental study on optimum usage of GGBS for the compressive strength of concrete. Cement and Concrete Composites. 2007. 29(6). Pp. 505–514. DOI: 10.1016/J.CEMCONCOMP.2007.01.001
10. Pal, S.C., Mukherjee, A., Pathak, S.R. Investigation of hydraulic activity of ground granulated blast furnace slag in concrete. Cement and Concrete Research. 2003. 33(9). Pp. 1481–1486. DOI: 10.1016/S0008-8846(03)00062-0
11. Ganesh Babu, K., Sree Rama Kumar, V. Efficiency of GGBS in concrete. Cement and Concrete Research. 2000. 30(7). Pp. 1031–1036. DOI: 10.1016/S0008-8846(00)00271-4
12. Shariq, M., Prasad, J., Masood, A. Effect of GGBFS on time dependent compressive strength of concrete. Construction and Building Materials. 2010. 24(8). Pp. 1469–1478. DOI: 10.1016/J.CONBUILDMAT.2010.01.007
13. Barnett, S.J., Soutsos, M.N., Millard, S.G., Bungey, J.H. Strength development of mortars containing ground granulated blast-furnace slag: Effect of curing temperature and determination of apparent activation energies. Cement and Concrete Research. 2005. 36(3). Pp. 434–440. DOI: 10.1016/J.CEMCONRES.2005.11.002
14. Sanjuán, M.A., Piñeiro, A., Rodríguez, O. Ground Granulated Blast Furnace Slag Efficiency Coefficient (k Value) in Concrete. Applications and Limits. Materiales De Construcción. 2011. 61(302). Pp. 303–313. DOI: 10.3989/mc.2011.60410
15. Szcze´sniak, A.S., Zychowicz, J., Stolarski, A. Influence of Fly Ash Additive on the Properties of Concrete with Slag Cement. Materials. 2020. 13(15). Article no. 3265. DOI: 10.3390/ma13153265
16. Juang, C.U., Kuo, W.T. Properties and Mechanical Strength Analysis of Concrete Using Fly Ash, Ground Granulated Blast Furnace Slag and Various Superplasticizers. Buildings. 2023. 13(7). Article no. 1644. DOI: 10.3390/buildings13071644
17. Rivera, R.A., Sanjuán, M.Á., Martín, D.A. Granulated Blast-Furnace Slag and Coal Fly Ash Ternary Portland Cements Optimization. Sustainability. 2020. 12(14). Pp. 5783. DOI: 10.3390/SU12145783
18. Chore, H.S., Joshi, M.P. Strength evaluation of concrete with fly ash and GGBFS as cement replacing materials. Advances in concrete construction. 2015. 3(3). Pp. 223–236. DOI: 10.12989/ACC.2015.3.3.223
19. Elaine Jin, Y., Yazdani, N. Substitution of Fly Ash, Slag, and Chemical Admixtures in Concrete Mix Designs. Journal of Materials in Civil Engineering. 2003. 15(6). Pp. 602–608. DOI: 10.1061/(ASCE)0899-1561(2003)15:6(602)
20. Bouzoubaâ, N., Foo, S. Use of Fly Ash and Slag in Concrete: A Best Practice Guide. Government of Canada Action Plan 2000 on Climate Change, 2005. 40 p.
21. Phul, A., Jaffar, M., Shah, S.N.R., Sandhu, A., GGBS And Fly Ash Effects on Compressive Strength by Partial Replacement of Cement Concrete. Civil Engineering Journal. 2019. 5(4). Pp. 913–921. DOI: 10.28991/cej-2019-03091299
22. Qu, Z., Liu, Z., Si, R., Zhang, Y. Effect of Various Fly Ash and Ground Granulated Blast Furnace Slag Content on Concrete Properties: Experiments and Modelling. Materials. 2020. 15(9). Article no. 3016. DOI: 10.3390/ma15093016
23. Nataraja, M.C., Shivakumara, M.J., Dalawai, V.N. Effect of design parameters on the proportioning of mass concrete using fly ash and ground granulated blast furnace slag. Materials Today: Proceeding. 2022. 62(8). Pp. 5329–5335. DOI: 10.1016/J.MATPR.2022.03.410
24. Wang, L., Uji, K., Ueno, A. Evaluation on reaction efficiency coefficient of fly ash based on threshold value of effective replacement ratio. Proceedings of the Cement & Concrete Society. 2017., 71(1). Pp. 645-652. DOI: 10.14250/cement.71.645
25. Babu, K.G., Nageswara Rao, G.S. Efficiency of fly ash in concrete. Cement and Concrete Composites. 1993. 15(4). Pp. 223–229. DOI: 10.1016/0958-9465(93)90025-5
26. Magalhães, M.S., Cezar, B.F., Lustosa, P.R. Influence of Brazilian fly ash fineness on the cementing efficiency factor, compressive strength and Young’s modulus of concrete. Developments in the Built Environment. 2023. 14. Article no. 100147. DOI: 10.1016/j.dibe.2023.100147
27. Härdtl, R. The k-value concept applied for GGBFS-Principles and experiences. Proceedings of the International RILEM Conference on Material Science (MatSci). 3. Additions Improving Properties of Concrete (AdIPoC). RILEM Publications SARL, 2010. Pp. 189–198.
28. Boukhatem, B., Ghrici, M., Kenai, S., Tagnit-Hamou, A. Prediction of Efficiency Factor of Ground-Granulated Blast-Furnace Slag of Concrete Using Artificial Neural Network. ACI Materials Journal. 2011. 108(1). Pp. 55–63.
29. Papadakis, V.G., Antiohos, S., Tsimas, S. Supplementary cementing materials in concrete: Part II: A fundamental estimation of the efficiency factor. Cement and Concrete Research. 2002. 32(10). Pp. 1533–1538. DOI: 10.1016/S0008-8846(02)00829-3
30. Bijen, J., Van Selst, R. Cement equivalence factors for fly ash. Cement and Concrete Research. 1993. 23(5). Pp. 1029–1039. DOI: 10.1016/0008-8846(93)90162-3
